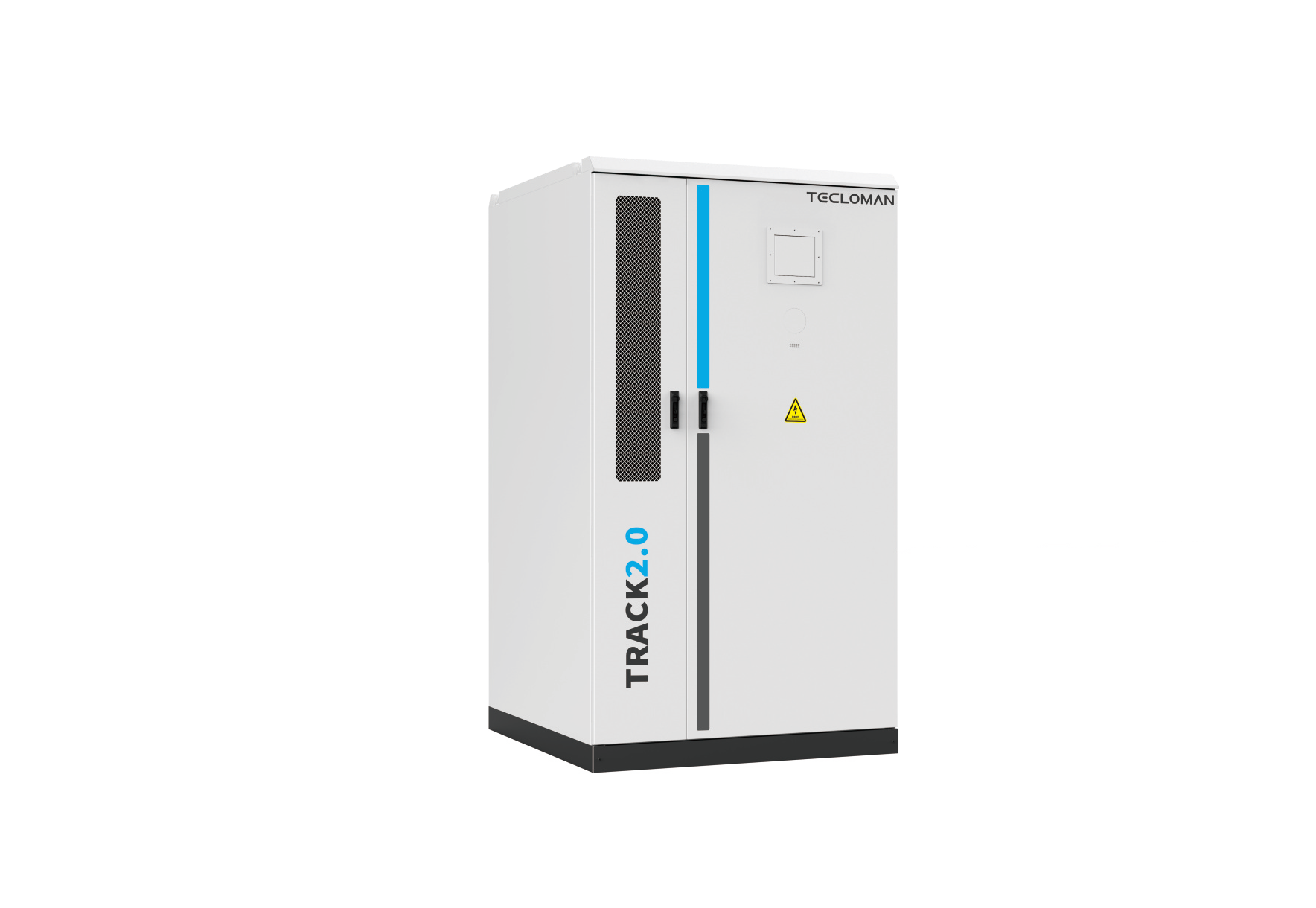

TRACK 2.0 Outdoor Liquid-cooled Battery Cabinet-630Ah
The outdoor liquid-cooled battery cabinet,based on an "All-in-One"modular integrated architecture,integrates battery clusters(1 to 8 PACKs),BMS,liquid cooling air conditioner,fire protection,and thermal management systems into a single standardized cabinet.It can be connected individually or used in parallel with PCS,featuring a small footprint,high reliability,easy installation,flexible scalability,convenient maintenance,and high system efficiency.It is suitable for various application scenarios such as microgrids,emergency backup power,peak shaving and valley filling,and distributed renewable energy integration.
Model | Track-499-630-Y | Track-665-630-Y |
Cell type | LFP3.2V/315Ah | |
Configuration | 2P156S | 2P208S |
Nominal capacity | 630Ah | 630Ah |
Nominal power | 314kWh | 419kwh |
Nominal voltage | 499.2VDC | 665.6VDC |
Operating Voltage Range | 436.8~561.6VDC | 582.4~748.8VDC |
Nominal charge/discharge current | 315A | |
Max.charge/discharge current | 400A | |
Low voltage power supply mode | 220V~50/60HZ 20A(Non-UPS power supply) | |
Charge/discharge efficiency | ≥95%(without auxiliary consumption) | |
Cycle life | ≥6000 Cycles | |
Operating Temperature | Charging temperature:0~55°℃,Discharging temperature:-20~55°℃ | |
Recommended operating temperature | 15°℃~40℃ | |
Storage temperature | Within one month:-30°℃~+55°℃,90%RH Max; Within three months:-10°℃~+45°℃,90%RH Max; Recommended storage temperature:-10℃~+25℃,85%RH Max) | |
Altitude | ≤4000 m | |
Thermal management mode | Liquid-cooled | |
Equalisation | Active/Passive | |
Relative humidity | 5~90%RH | |
IPgrade | IP54 | |
Dimension(W×D×H) | 1300×1300×2320mm(±5mm) | |
Weight | ≈3098kg | ≈3814kg |
Communication mode | Modbus/CAN2.0/RS485 | |
Certificates | IEC62477-1,IEC61000-6-2/4,IEC62619,UL1973,U19540A,UN38.3(under certification) | |
