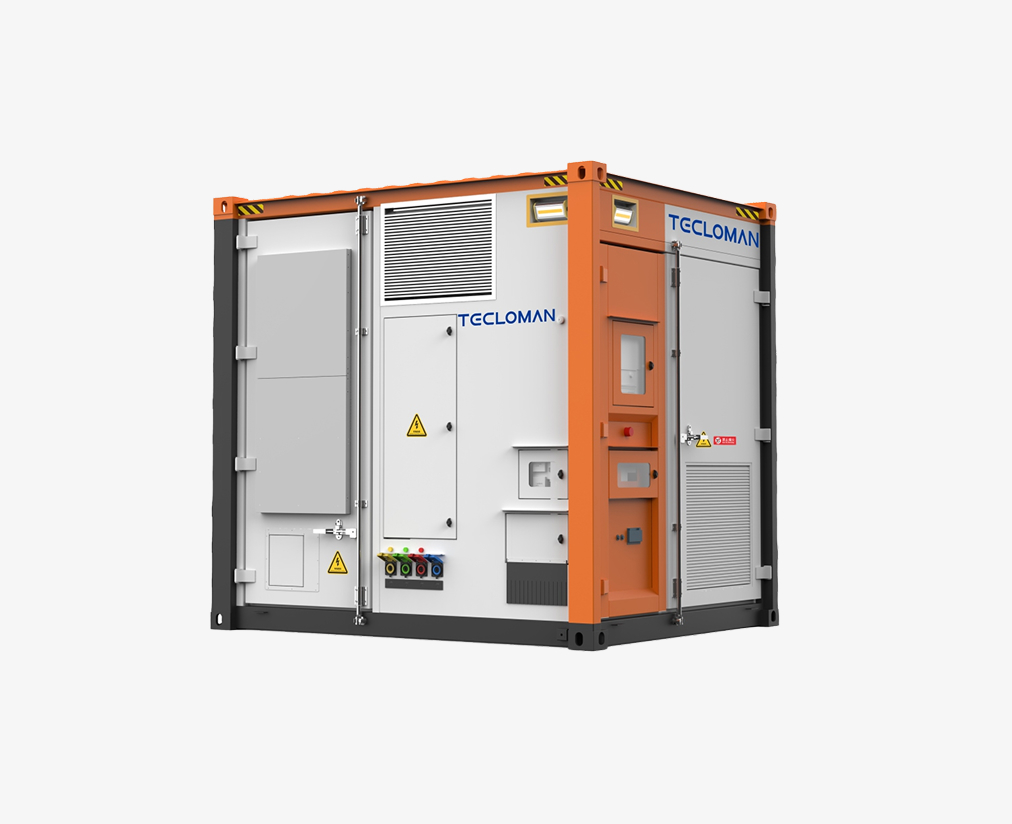

Cubox（liquid-cooling)
Cubox, a new generation of mobile energy storage power supplies, helps operators significantly reduce fuel consumption and CO2 emissions while providing high performance,low noise,and extremely low maintenance.Utilizing high-density lithium-ion batteries and a high-efficiency inverter system,it achieves efficient energy storage and output.
Compared to traditional products, Cubox is more compact and lightweight, and its standard container size facilitates transportation.
They are ideal for noise-sensitive environments such as construction sites in large cities,telecommunications leasing applications, and working in conjunction with generators to address low-load conditions.
Model | TESS-500-838-LME | ||
AC (grid connection) | |||
Single unit rated power | 500kW | ||
Rated charging power of a single unit | 419kW | ||
Rated discharge power of a single unit | 500kW | ||
Rated voltage | 400 / 480 / 600 / 690VAC | ||
Rated current | 721/601/481/418A | ||
AC system | 3L / N / PE or 3L / PE | ||
Voltage range | -15% ~ +10% | ||
Rated frequency | 50 / 60Hz | ||
THDI | <3%(at rated power) | ||
Power factor range | 1(Leading) ~ 1(Lagging) | ||
Overload capacity | 110% overload (10 min), 120% overload (1 min) | ||
AC (Offline) | |||
Rated Power | 500kW | ||
Peak power of single unit discharge | 600kW(60s) | ||
Parallel rated discharge power | 450kW | ||
Peak power of parallel discharge | 540kW(60s) | ||
Rated voltage | 400 / 480 / 600 / 690VAC | ||
Rated current | 721 / 601 / 481 / 418A | ||
Rated frequency | 50 / 60Hz | ||
THDU | ＜3% (linear load) | ||
DC (Battery) | |||
Cell Type | LFP 3.2V / 315Ah | ||
Cell life | 6000 times in 10 years | ||
Grouping | 416S2P | ||
Charge/discharge rate | ≤0.5P | ||
Peak Discharge Rate | 0.7P | ||
Battery rated voltage | 1331.2V | ||
Battery voltage range | 1164.8V ~ 1497.6V DC | ||
Basic Parameters | |||
Noise | <75dB | ||
Protection level | IP54 | ||
Corrosion resistance level | C3 | ||
Operating Temperature | -20 ~ 55℃ | ||
Fire extinguishing | Aerosol / Perfluorohexanone | ||
Cooling method | Module liquid cooling + PCS air cooling | ||
Relative humidity | 0 ~ 95%,non-condensing | ||
Highest altitude | <2000m (reduction in amount if exceeding 2000m) | ||
Dimensions (W×D×H) | 2991×2438×2896mm | ||
Weight | ≤11000kg | ||
Certification | Battery：IEC61000-6-2/4, IEC62477-1, IEC62619, UL1973, UL9540A, UN38.3 PCS：IEC62477-1:2022, IEC 61000 6-2:2016, EN IEC 61000-6-2:2019, IEC 61000-6 4:2018, ENIEC 61000-6 4:2019, EN 50549-1:2019+A1:2023, EN 50549-2:2019+A1:2023 | ||
Communication | |||
Display | Touch Screen | ||
Communication Interface | 1RS485 + 1LAN + 1 Dry Contact | ||
Communication Protocol | Modbus TCP/RTU | ||
