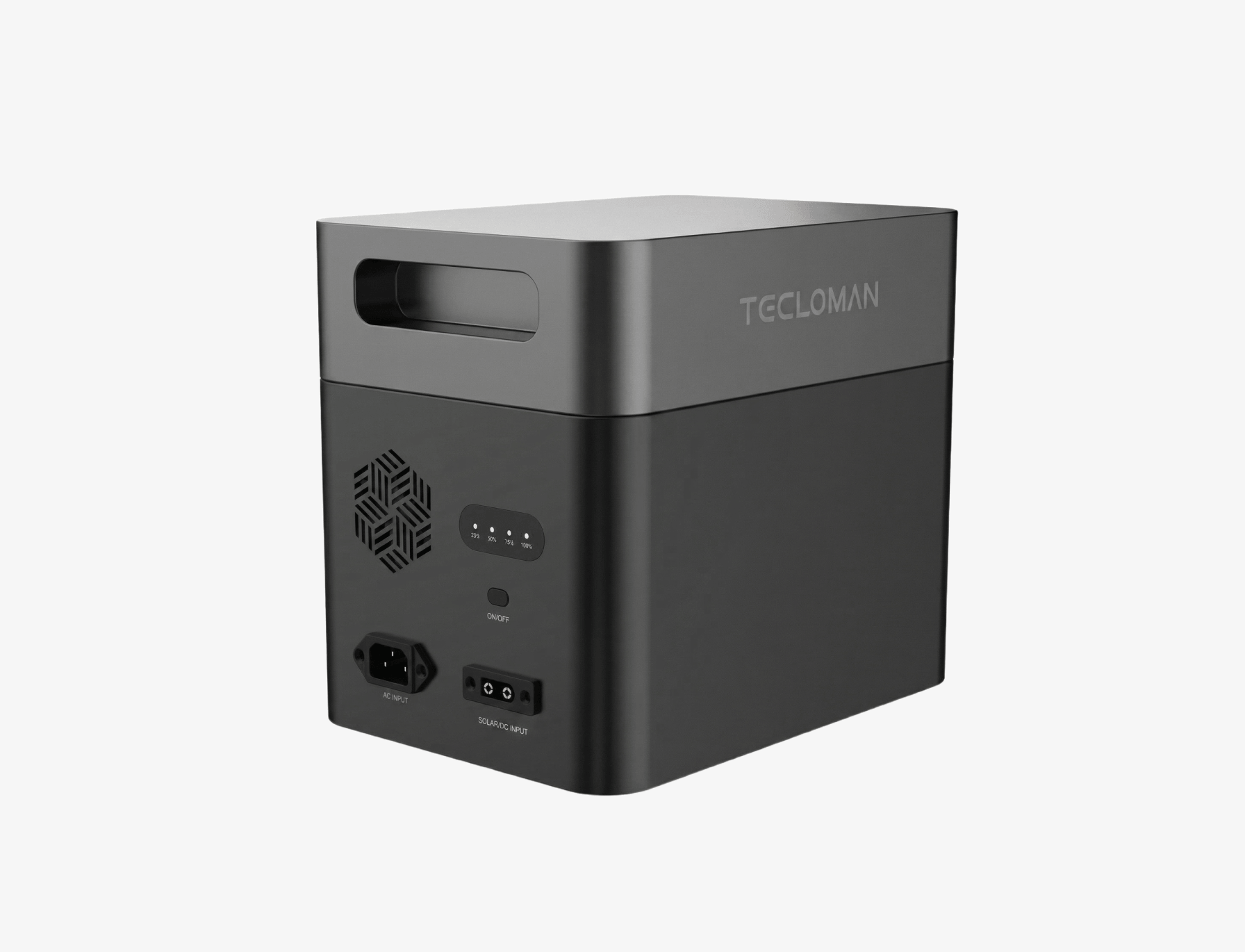

SolGlow-P1
SolGlow-PI can be charged by grid or solar, Whether indoors or outdoors. has built-in MPPT and supports amaximum of 50oW solar charging.
The charging voltage is 12-60V. It can be directly connected to the solar panelthrough the XT60 interface for charging. Lithium iron phosphate batteries are safe and durable, capable of over4000 cycles, Even if charged daily, they can provide a service life of about 10 years.
Model | SolGlow-P1-300 | SolGlow-P1-500 |
Battery | 1* battery cell LiFePO4 | |
Battery Capacity | 314Ah | |
Battery Energy | 1004Wh | |
Input Specifications | ||
AC Input Rated Voltage | 110V/220V | |
AC Charging Rated Power | 300W | |
AC Charging Frequency | 45Hz - 65Hz | |
PV Input Voltage Range | 12 - 60V | |
PV Input Maximum Power | 200W | 500W |
PV Charging Efficiency | 88% | |
Output Specifications | ||
AC Output Rated Voltage | 110V/220V | |
AC Output Rated Power | 300W | 500W |
AC Output Frequency | 50 / 60Hz | |
AC Output Efficiency | 85% | |
Output Waveform | Pure sine wave | |
AC Output Peak Power | 600W | — |
Bypass Mode | Available | |
UPS Mode | UPS class switch time: <12ms | |
DC Output Rated Voltage | 3.2V | |
Overall Performance | ||
Trickle Charging | Available | |
Heat Dissipation Method | Fan forced - cooling | |
Protection Functions | OLP, OVP, OCP, OTP, LVP | |
Interfaces | ||
USB DC Output | 2*USB Type A ports, 5V/9V/12V, 20W max | |
AC Output | 2*AC ports, 300W max | 2*AC ports, 500W max |
PV Input | 1*XT60 port 12-60V, 200W max | 1*XT60 port 12-60V, 500W max |
AC Input | 1*C14 AC inlet port | |
Battery Level Indicator | 4 LEDs | |
Product Dimensions | 264 × 190 × 230mm | |
Product Weight | ≤10.5kg | |
Configuration List | Host + PV panel (optional) | |
