Liquid Cooled Module Product Series
The liquid-cooled battery module product series consists of modules built with 52 lithium iron phosphate (LiFePO₄)cells in a 1P52S configuration.These modules offer high energy density,a wide operating temperature range,long cycle life,and excellent safety performance.Each module integrates data harnesses and a Battery Management Module (BMM)for voltage and temperature monitoring.The design also includes connectors,a liquid cooling plate,structural mounting components,and a fire detection and pre- warning module (Pack-level fire protection).The modular architecture allows for easy transportation,installation,and maintenance.

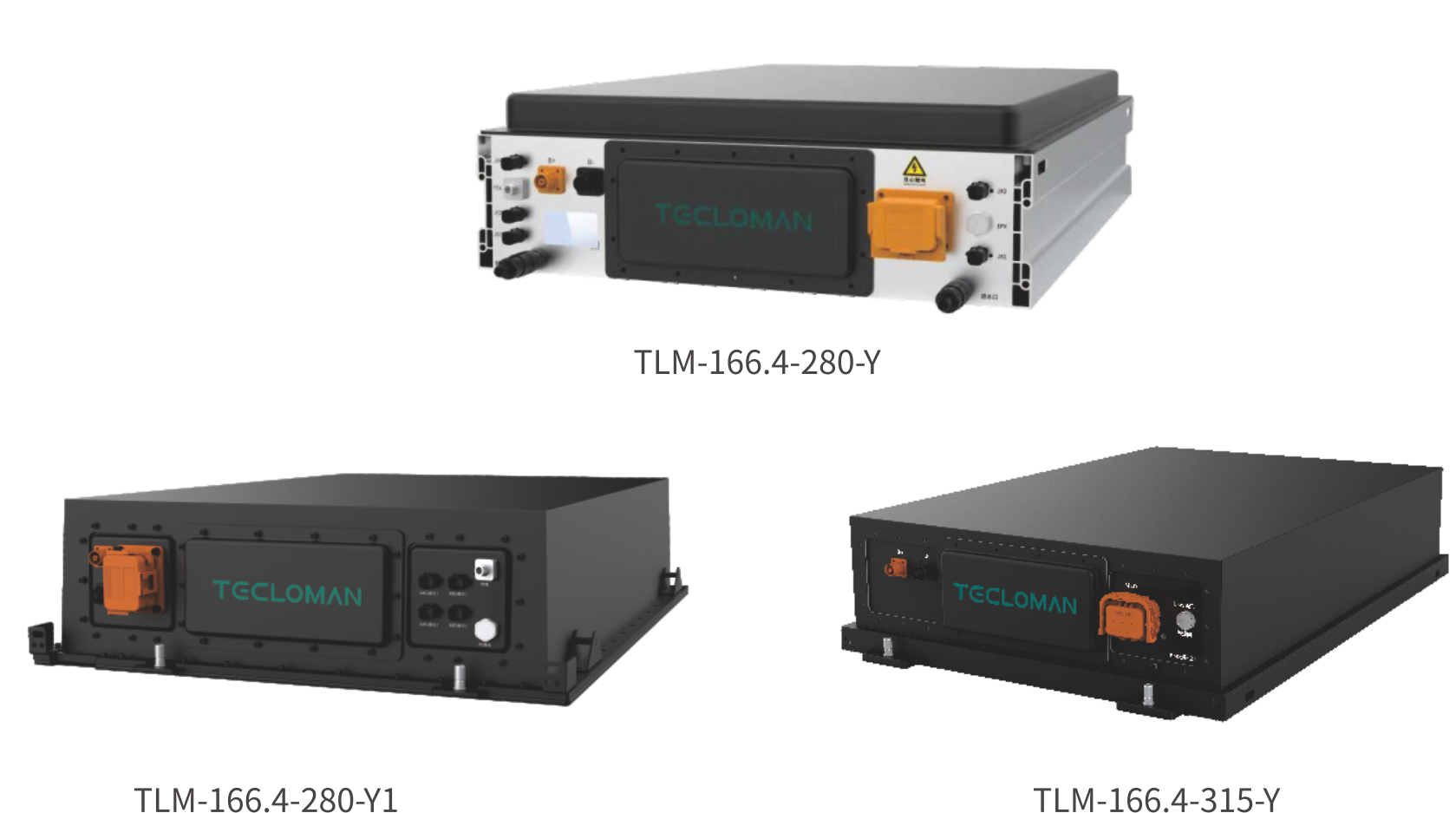

model | TLM-166.4-280-Y | TLM-166.4-280-Y1 | TLM-166.4-315-Y |
Cell capacity | 280Ah | 280Ah | 315Ah |
Series-Parallel Configuration | 1P52S | ||
Nominal voltage | DC166.4V | ||
Nominal energy | 46.59kWh | 46.59kWh | 52.416kWh |
Discharge cutoff voltage | 130V or any battery cell in the module reaches 2.5V | ||
Charging cut-off voltage | 189.8VAny single cell in the module reaches 3.65V | ||
Nominal current | 140A | 140A | 157A |
Working temperature | Recommended operating temperature:10℃~45℃, charge temperature range:0~55℃,discharge temperature range::-20~55℃ | ||
Storage temperature range Short-term storage(1month):-20~45℃,long-term storage(6 months):0~25℃ | |||
Positive/negative terminal connection method | Quick connector | ||
Communication Interface | CAN | ||
Shipment SOC(State of Charge) | 30%(25±2℃) | ||
Cycle life | ≥6000 cycles | ||
Above sea level | ≤4000 m | ||
Thermal management mode | Liquid cooling | ||
IP grade | IP67 | ||
Dimensions(W×D×H) | 782×1087×240 mm | 808×1181×242.5 mm | 776×1150×240 mm |
Weight | 335±5kg | 340±5kg | 345±5kg |
Certifications | CE,UN38.3,ROHS2.0 | / | UN38.3,UL9540A,CE,ROHS2.0 (under certification) |
