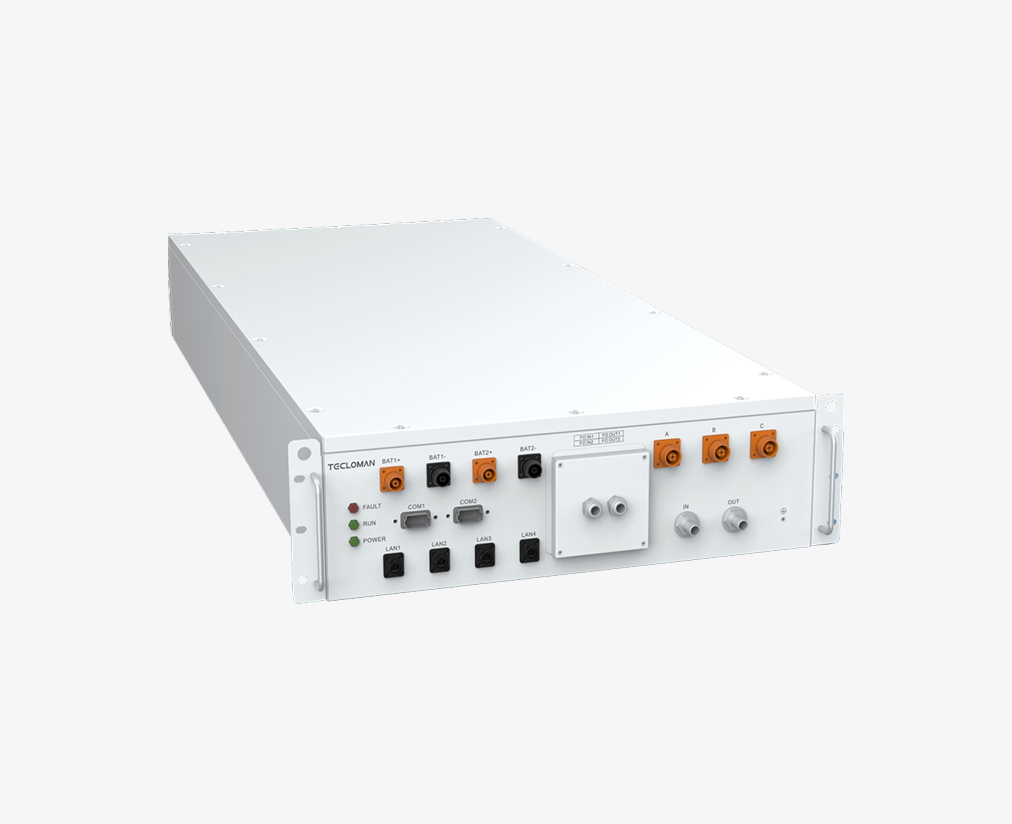

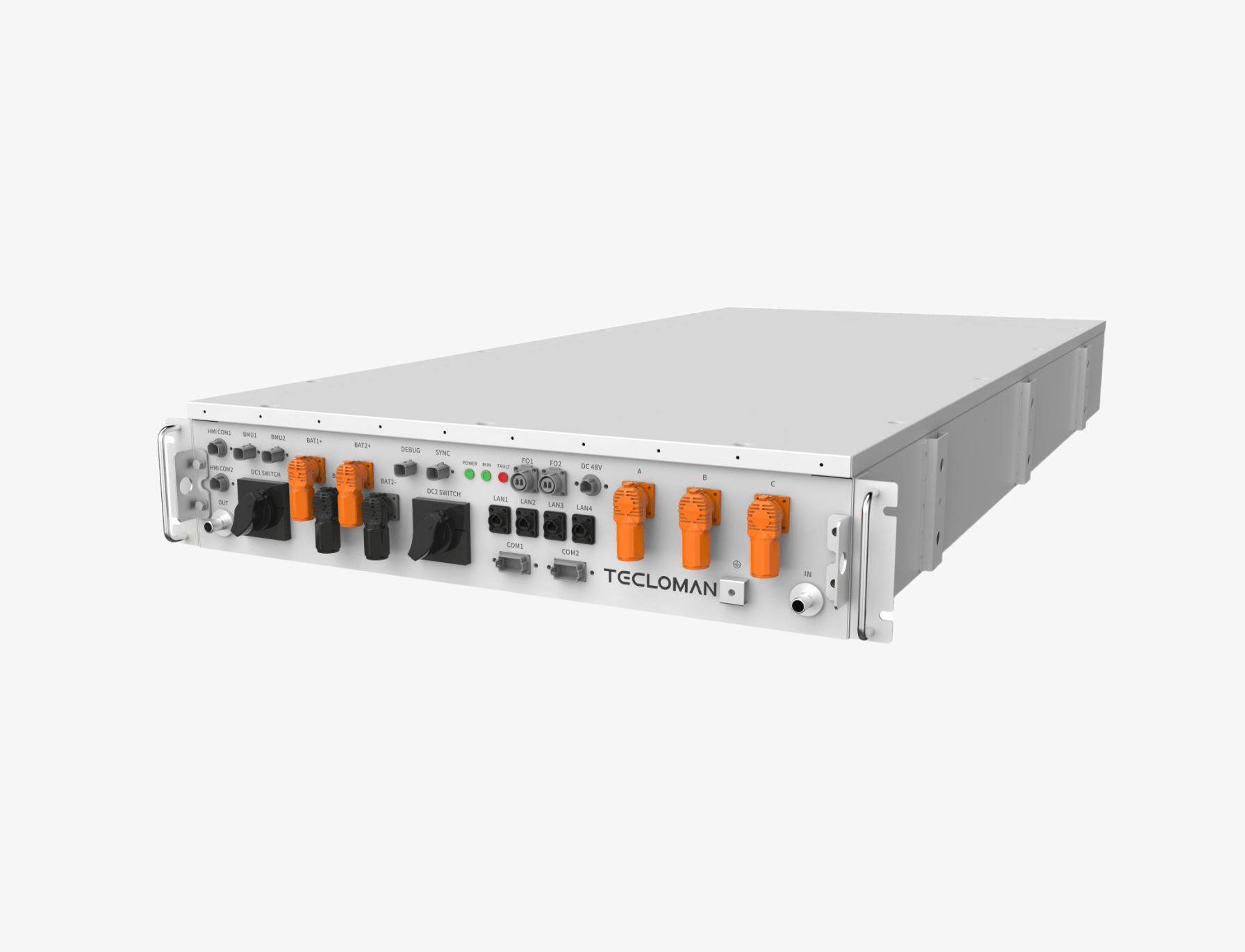

Model

TPCS-500/0 . 69/3-LM

Direct current side

DC voltage range

1050 ~ 1500V

Maximum DC power

550kW

Maximum DC current

262A×2

AC grid connection parameters

Rated AC power

500kW

Maximum AC power

550kW

Rated alternating current

418A

Maximum alternating current

460A

Rated grid voltage

690V

Maximum overload capacity

110% overload (long-term), 120% overload (1 minute)

Allowable voltage range of power grid

-12% ~ +10%（Configurable）

Grid connection type

3P + PE

Rated grid frequency

50Hz / 60Hz

Allowable power grid frequency range

45 ~ 50Hz / 60 ~ 65Hz

Range of adjustable power factor

-1 ~  +1

Isolation transformer

⽆

THDi at rated power

<3%（Rated power）

AC off-grid parameters

Rated AC power

500kW

Rated output voltage

690V

Rated alternating current

418A

Rated Frequency

50Hz / 60Hz

THDv at rated power

<3%（Rated power）

System

Isolation method

Non-isolated type

CMaximum conversion efficiency

98.7%

Allow ambient temperature

-40 ~ +60℃

Cooling down method

Liquid cooling

Levels of protection

IP66

Relative humidity

0 ~ 95%（No condensation）

Highest altitude

2000m (Linear derating to 70% from 2000m to 4000m)

Way to install

Rack-mounted/vertical

Size（W×D×H）

780×1850×245 mm

Weight

200kg

Communication in-terface

RS485、CAN、Ethernet

Communication pr-otoeol

MODBUS-RTU / MODBUS-TCP / IEC61850(GOOSE、MMS Dual networks)/IEC104

Attestation

Standard

UL1741，IEEE1547，IEC/EN62477-1，EN50549-1，IEEE519，IEC/EN61000 6-2，IEC/EN61000-6 4，FCC Part15
