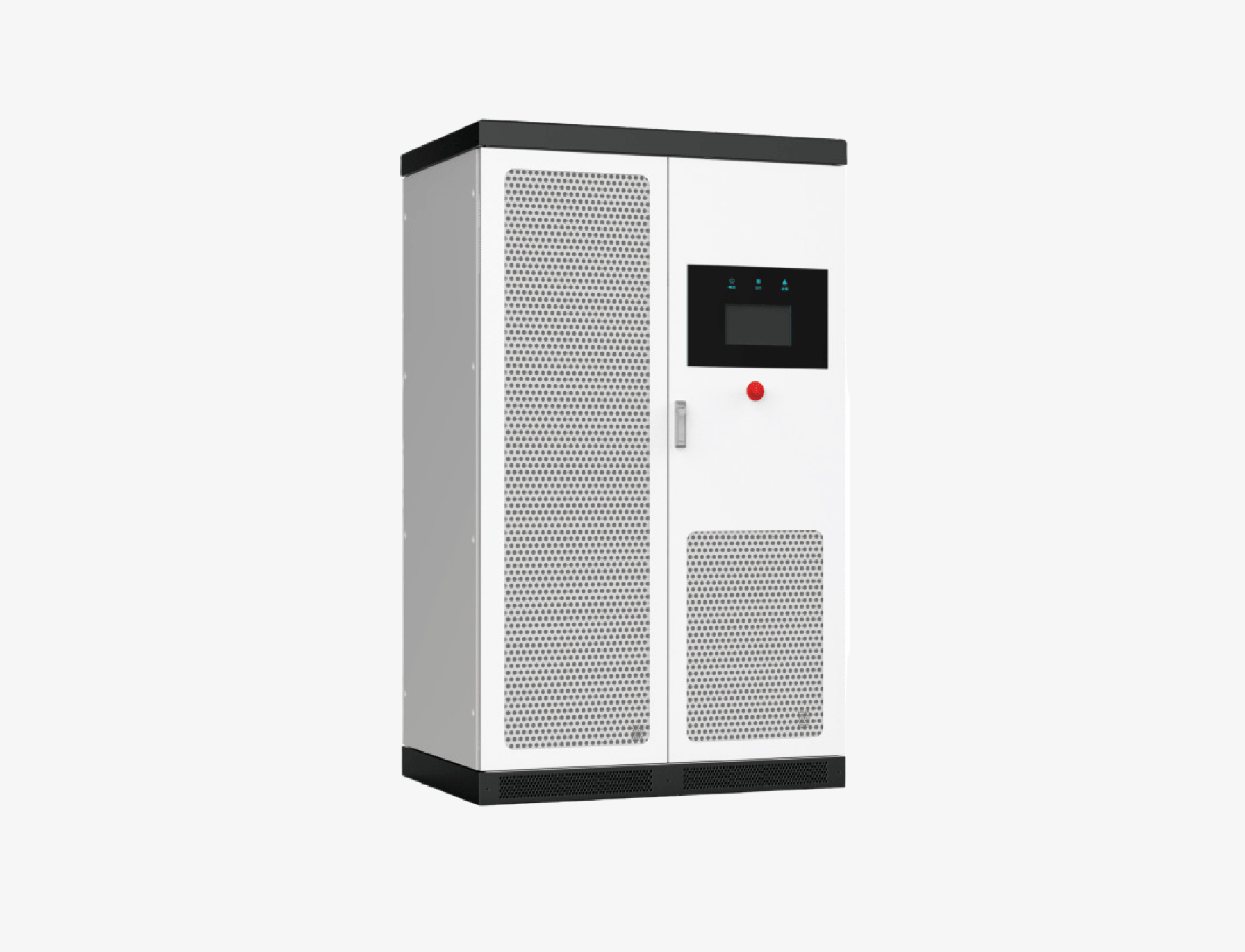

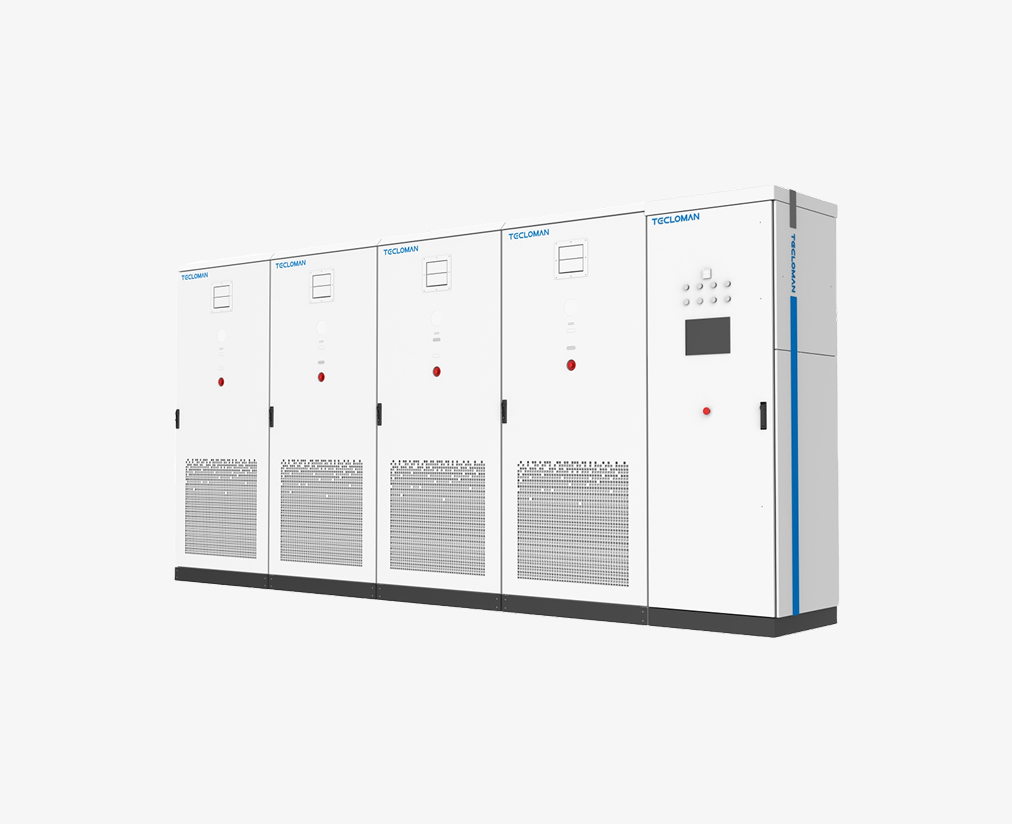

Model

TPCS 630

DC parameters

Maximum operating Voltage

1000V

Minimum operating Voltage

570V

Full-load voltage range

600~850V

Maximum input current

1155A

Grid-connected AC parameter

Rated output power

630kW

Maximum output power

693kW

AC rated voltage

400V

AC rated frequency

50Hz/60Hz

Rated output current

909A

Maximum output current

1000A

Maximum overload capacity

110% overload (10 min), 120% overload (1 min)

AC voltage range

85%Un~110%Un

AC frequency range

45~55Hz/55~65Hz (settable)

THDi

<5%(Rated power)

DC component of current

<0.5% of rated output current

Power factor

-0.99(advance)~0.99(lag)

Reactive power controllable range

-100%~100%(transformer required)

Isolation method

none

AC System Wiring Type

3W+N+PE

Off-grid AC parameter

AC rated voltage

400V

AC rated frequency

50Hz/60Hz

THDu

<3% (Linear load)

DC component of voltage

0.5% Un (linear balanced load)

Load capacity of unbalance load

100%

Voltage variation range

<3%Un

Gird-connection and off switch mode

Gird-connection and off switch capacity

Planned off-grid

Passive off-grid switching mode and switching time

<10 ms with switching cabinet

Efficiency

Maximum efficiency

99.0%

Basic parameters

Dimensions (W x H x D)

1216mm x 850mm x 2054mm

Weight

1200kg

Permissible operating temperature range

-25°C~55°C (over 45 °C, it will operate in derating)

Cooling method

Forced air cooling

Protection Grade

IP20

Relative humidity

≤95%RH, non-condensing

Highest Altitude

≤4000m (Derated above 2000m)

Self power consumption in shutdown

<50W

HMI

Touch Screen

Communication Interface

RS485, Ethernet, CAN

Support protocols

Modbus TCP, Modbus RTU
