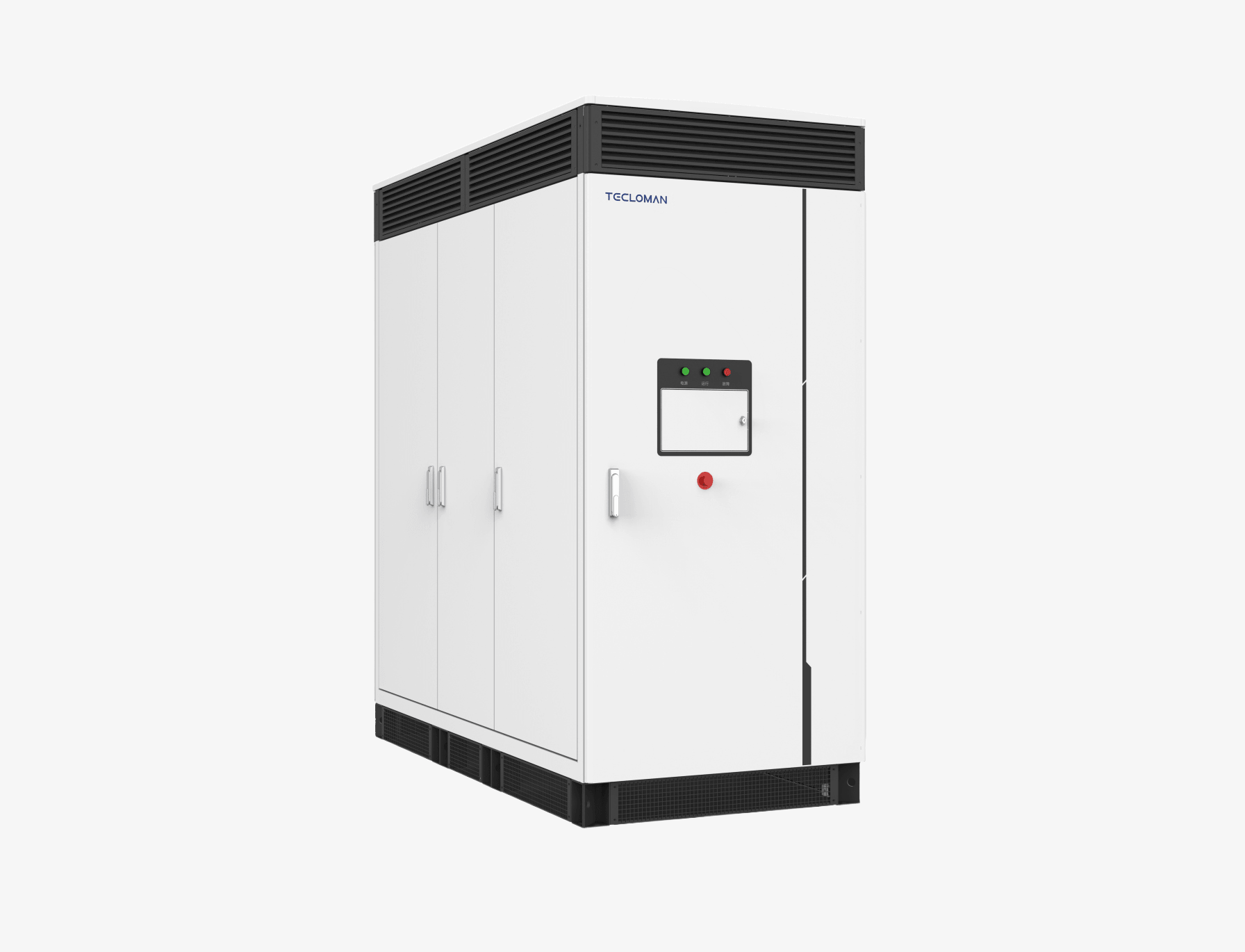

Model

TPCS-2500

DC Parameters

Maximum DC Voltage

1500V

DC Voltage Range

1000-1500V

Maximum DC Current

3000A

AC Grid-connected Parameters

Rated Power

2500kW

Maximum Capacity

3000kVA

Maximum Current

2092A @ 45°C / 2510A @ 30°C

Grid Connection Method

Three-phase, three-wire

Isolation Method

Transformerless

Active Power Control

-100%-100%

Rated Voltage

690V

Voltage Range

607-759V

Rated Frequency

50Hz/60Hz

Frequency Range

±5Hz

Maximum Output Harmonic Distortion

≤3% (at rated power)

Power Factor

> 0.99 (at rated power)

Charge/Discharge Response Time

<100ms

AC Off-grid Parameters

Rated Voltage

690V

Voltage Deviation

<1%UN (linear balanced load)

Voltage Unbalance

<0.5%UN (linear balanced load)

THDU

<3% (linear load)

Rated Frequency

50Hz/60Hz

Unbalanced Load Capability

100%

Protection & Monitoring

DC Input Protection

Isolation switch + fuse

AC Output Protection

Circuit breaker

Surge Protection

DC Type II / AC Type II

Insulation Monitoring

Available

Overtemperature Protection

Available

System

Cable Entry Method

Bottom cable entry

Maximum Efficiency

>99%

Overload Capacity

1.1× overload for continuous operation, 1.2× overload for 1 min

Allowable Ambient Temperature

-35°C to 60°C (<45°C derating, <20°C heating start-up)

Allowable Relative Humidity

0-100% RH, non-condensing

Maximum Operating Altitude

5000 m (>2000 m derating)

Noise (dB)

<80

Dimensions (W × D × H)

1080×2380×2444mm

IP Rating

>IP54

Cooling Method

Smart air cooling

Communication Interface

Rs485, Ethernet

Communication Protocol

MODBUS-RTU, MODBUS-TCP, IEC 61850 (GOOSE & MMS dual-network), IEC 104

Certification

Standards

GB/T 34120, GB/T 34133
