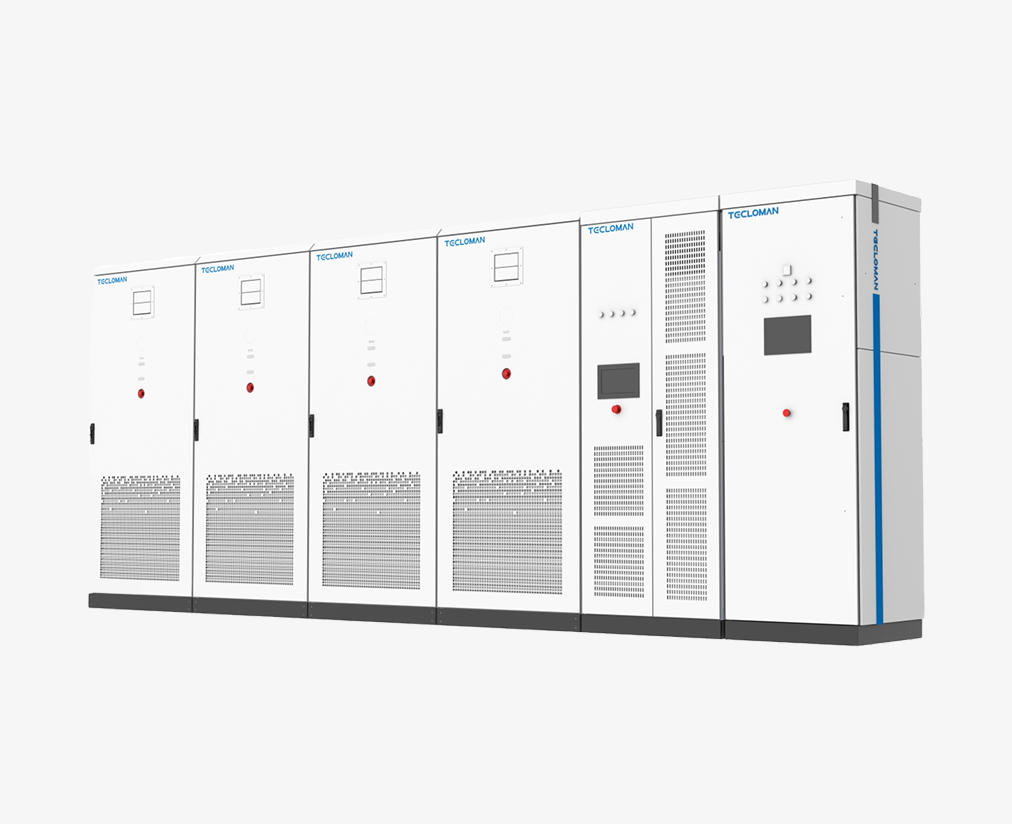

Tecloman's MW-level liquid-cooled commercial and industrial energy storage system utilizes 315Ah LFP battery cells and a modular cabinet design. The power and battery capacity can be adjusted at any time according to customer needs, allowing for flexible configurations to meet diverse customer requirements.
The MW-level liquid-cooled commercial and industrial energy storage system is primarily designed for commercial and industrial energy storage applications.
It supports AC 400V grid connection, photovoltaic integration, and includes reserved interfaces for charging stations. With high safety protection levels, fire protection, and intelligent temperature control systems, it is suitable for a variety of commercial and industrial energy storage applications.
Model | THESS-500-1048 | ||
AC（On-Grid） | |||
Maximum power | 550kW | ||
Rated power | 500kW | ||
Rated Voltage | 400V | ||
Rated Current | 721A | ||
Voltage Range | 400VAC（-15%~+10%） | ||
Rated Frequency | 50Hz/60Hz | ||
THDI | ＜3% | ||
Power Factor | -0.9~0.9 | ||
Wiring | 3/N/PE | ||
AC (Off-grid) | |||
Maximum power | 550kW | ||
Rated Power | 500kW | ||
Rated Voltage | 400V | ||
Rated Current | 721A | ||
Rated Frequency | 50Hz/60Hz | ||
THDU | <3%（Resistive load） | ||
Overload capacity | 120% Overload（1min） | ||
Direct current (batteries and photovoltaic) | |||
Maximum PV open-circuit voltage | 1000VDC | ||
Rated PV power | 500kWp | ||
Maximum PV power | 1.1~1.4 times rated | ||
PV Voltage range | 400V~678VDC | ||
Rated battery voltage | 832V | ||
Battery voltage range | 728~949VDC | ||
Battery capacity | 1048kWh | ||
Maximum charging power | 550kW | ||
Maximum discharging power | 550kW | ||
Maximum charging current | 793A | ||
Maximum discharging current | 793A | ||
Basic parameters | |||
Noise | <75dB（A）@1m | ||
Protection level | IP54 | ||
Corrosion protection rating | C3 | ||
Operating temperature | -25℃ ~ +55℃ | ||
Protection function | Over/undervoltage, overcurrent, over/under temperature, excessively high/lowSOC (State of Charge), low insulation resistance, short-circuit protection, etc. | ||
Fire protection | aerosol | ||
Cooling Method | Liquid-cooled air conditioning + forced air cooling | ||
Relative Humidity | 0~95%(non-condensing) | ||
Altitude | 4000m (derated above 2000m) | ||
Dimensions（W×D×H) | 5700×1300×2350mm | ||
Weight | ≈11T | ||
Communication | |||
Display | Touch Screen | ||
Communication Interface | RS485、CAN、LAN | ||
